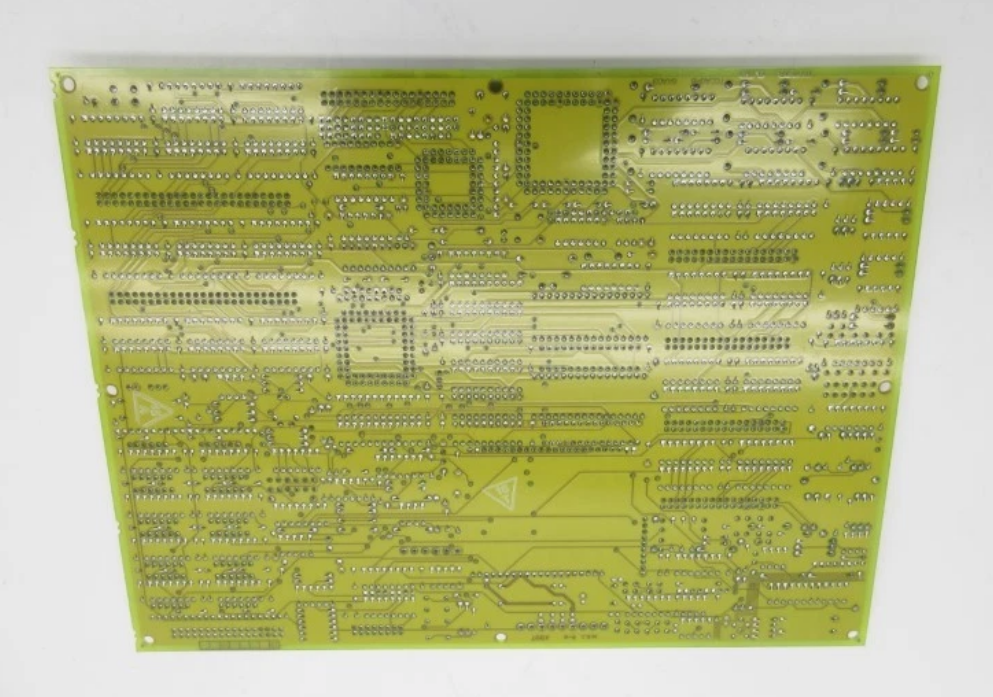

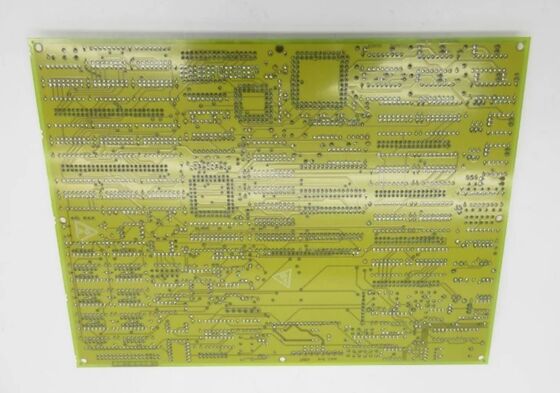

DS200TCCBG1A General Electric Mark V I/O Board TC2000 Common Analog

The DS200TCCBG1A is an I/O TC2000 Common Analog Board from the Mark V Turbine Control System series. This board demonstrates compatibility with various hardware components and specifications through its standard Mark V series components.

• Series: Mark V
• Functional Description: TC2000 Analog I/O Module
• PCB Coating: Normal Coating
• Artwork Revision: A

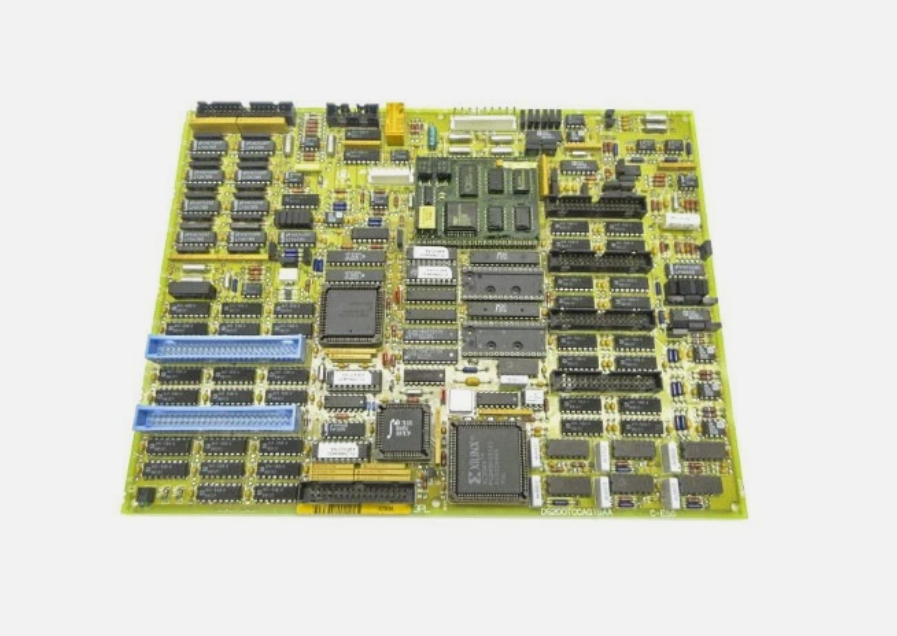

The board is equipped with one LED and two 50-pin connectors (JCC and JDD). It features an 80196 microprocessor and multiple programmable read-only memory (PROM) modules that store instructions and firmware used by the microprocessor and programmable logic devices. This information can be erased and updated with new versions.

The DS200TCCBG1B is a direct upgrade to the DS200TCCBG1A, introduced by GE. This upgraded board features firmware improvements and enhanced components, offering higher reliability over the DS200TCCBG1A.

A gas turbine power plant was experiencing issues with insufficient analog I/O channels and frequent failures of outdated boards. The plant deployed the GE Mark V control system's DS200TCCBG1A expansion board in the R5 rack, which, when combined with existing terminal blocks, expanded monitoring capabilities for temperature and electrical parameters while integrating seamlessly with the original system.

Following the upgrade, parameter acquisition coverage increased to over 95%, thermal efficiency improved by approximately 1.2%, troubleshooting time was reduced by about 40%, and retrofit costs were cut by approximately 60%.
